OT Systems introduces  the Ethernet-over-UTP Extender Series
(ET1100UPp and ET1100U) designed to offer system integrators the flexibility of connecting IP devices over Cat.5e cable for longer monitoring distances.

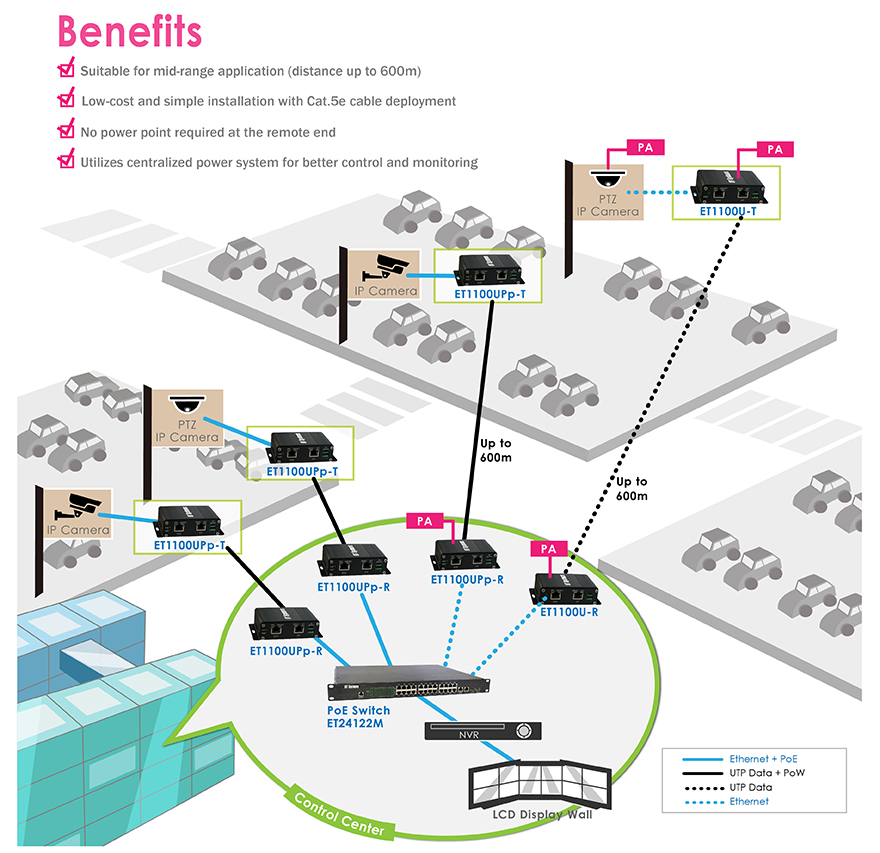

The ET1100UPp-R (Receiver) supplies power to the ET1100UPp-T (Transmitter)
via the UTP cable by power-over-wire (PoW), which in turn the transmitter supplies power to its connected IP devices via Power over Ethernet (PoE). With the UTP
Extender products, system integrators can install IP cameras or other IP devices
on a Cat.5e cable up to 600m from the central monitoring station without needing
an additional power point at the remote end. In addition, the ET1100UPp-R can get
the power from a PoE switch; working together, a system integrator can easily
construct and monitor a centralized power IP CCTV System.
This UTP extender series extend the Ethernet transmission distance by breaking
the 100-meter Ethernet limit, enabling a simple system configuration and easy installation.
|
